24V 120W / DRV-24V120W1PN
 글쓴이 : 최고 관리자
조회 : 519

DIN Rail Power Supply

CliQ VA

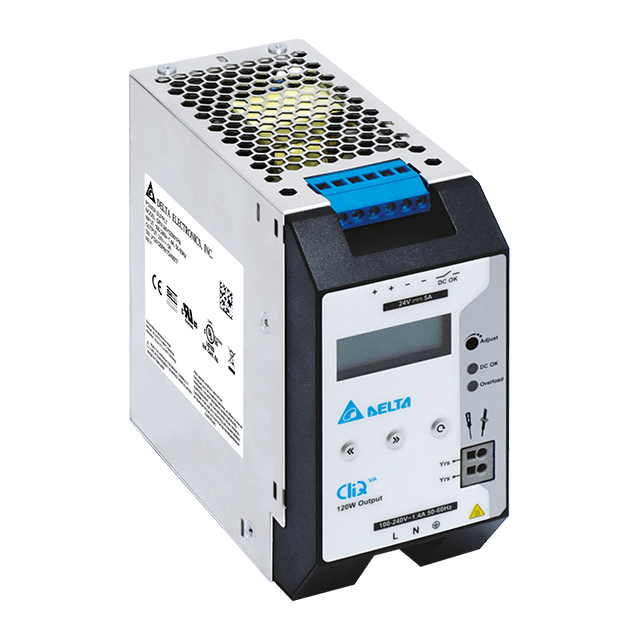

24V 120W / DRV-24V120W1PN





Highlights & Features

  • Universal AC input voltage range
  • LCD display monitoring the output current / voltage / peak current and temperature
  • Life time expectancy alarm signal and monitoring
  • Built-in active PFC with up to 94% efficiency
  • Power Boost of 150% up to 7 seconds
  • Advanced Power Boost (APB) – protect system and ensure continuing operation when large inrush current detected due to faulty load on a multiple load connection
  • DC OK Contact and LED indicator for DC OK/ Overload
  • Conformal coating on PCBAs to protect against common dust and chemical pollutants
Dimensions (L x W x D) :
124 x 60 x 139 mm
4.88" x 2.36" x 5.47"
Unit Weight :
0.75 kg (1.65 lb)


Output
Nominal Output Voltage
24V
Output Voltage Adjustment Range
24-28Vdc
Output Current
5A
Output Power
120W
Line Regulation
20mV Max. (@ 85-264Vac input, 100% load)
Load Regulation
100mV Max. (@ 85-264Vac input, 0-100% load)
PARD (20MHz)
50mVpp Max.
Start-up Time
750ms Max. (24V, 5A) @ 100Vac, 120Vac, 230Vac
Hold-up Time
140ms typ. (24V, 2.5A.) @ 100, 120, 230Vac
70ms typ. (24V, 5A.) @ 100, 120, 230Vac
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 5% Max. @ 0-100% load Slew rate 0.1A/µs (@ 5Hz, 50Hz & 1kHz, 50% Duty Cycle)
Start-up with Capacitive Loads
10,000µF Max.
Rise Time
20ms Max. (0µF, 24V, 5A) @ 100Vac, 120Vac, 230Vac
50ms Max. (5,000µF, 24V, 5A) @ 100Vac, 120Vac, 230Vac
